Mopeka® Cathodic Sentinel

Mopeka® Cathodic Sentinel & Cathodic Sentinel Plus

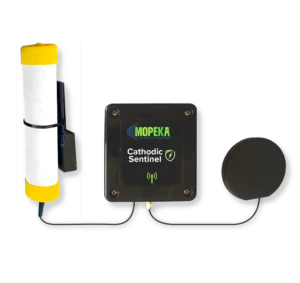

Mopeka® Cathodic Sentinel, the very first and only remote Cellular & Cloud based Monitored Cathodic Protection. The monitor has real-time ability to read VOLTAGE, CURRENT, and GROUND MOISTURE levels to validate that your tank is protected. It is safe, consistent, accurate, and reliable. The solution is designed for both Pressurized and Non-Pressurized underground tanks. Whether you are looking to protect and monitor your levels of Propane, Oil, Chemicals, or Water, we have the solution to meet your Cathodic Monitoring needs.

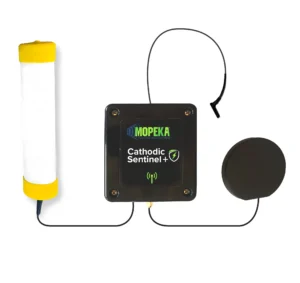

The NEWLY announce Mopeka® Cathodic Sentinel Plus adds the convenience of an Integrated Tank Level Monitor, ensuring you have a signal solution to monitor your Cathodic Protection and Tank Levels.

Features of the Mopeka® Cathodic Sentinel and Cathodic Sentinel Plus*:

Works on a global SIM chip that operates on the 4G LTE, CATM1, NB-IoT networks and Boosted Bluetooth.
10 Year Battery Life – Replaceable
Simple to install on NEW and EXISTING tank environments. Class 1 Div 1 and IP68 Certified.
Ensures a safe, consistent, accurate and reliable reading for the protection of all your underground tanks.
Accurate voltage test and current test.
Measure ground moisture levels.
Twice daily readings straight to your desktop or mobile device.
Compliance with EPA and NFPA regulatory requirements.
*ALL of the above PLUS… Measures Tank Volume.

	Mopeka® Cathodic Sentinel	Mopeka® Cathodic Sentinel Plus
Monitor	Cathodic Monitoring	Cathodic Monitoring and Tank Volume (Read Ready Gauge)
Mounting Location	Under the Lid and in the Ground	Under the Lid and in the Ground
UL, UCL, ATEX CERTIFICATIONS	Class 1, Division 1, Group D, Class 1, Zone 1, Group IIA, IP68	Class 1, Division 1, Group D, Class 1, Zone 1, Group IIA, IP68
Tank Type	All Tank Types	All Tank Types
Tank Orientation	Underground	Underground
Operating Temperature Range	-50° TO 60°C -55° TO 140°F	-50° TO 60°C -55° TO 140°F
Default Communications	Global SIM 4G LTE CAT M1, NB-IoT, Boosted Bluetooth	Global SIM 4G LTE CAT M1, NB-IoT, Boosted Bluetooth
Battery Life*	10 years, replaceable	10 years, replaceable
Battery Type	Energizer Lithium AA	Energizer Lithium AA
Warranty	5 Years	5 Years
